Vaccum Drying Oven

  • Membrane type keypad
  • Mechanical forced flow convection
  • Microprocessor PID temperature control up to 250 °C Digital Set and Readout
  • Ideal for Baking, Drying, Conditioning and sterilizing
  • Tempered Safety Glass Window
  • Silent Fan Motor

Features:

  • Forced Convection type Oven Ideal for baking, drying, conditioning, sterilizing and Quality control even the most critical laboratory. Application temperature between ambient +5°C to 250 °C
  • Digital PID Control Membrane type touch keypad provides precision Temperature control, timer, alarm, auto- tunning.
  • Perforated Stainless Steel Shelf is available for an optional order.
  • Tempered Safety Glass Window For easy sample view without door opening
  • Safety and Convenience Over temperature and current protection, Leakage Breaker ensure user safety and adjustable sliding rack, silent fan motor, fan motor automatically stops when door is opened

Technical parameters:

Features:

  • Ideal for Fine Vacuum Vacuum embedding, moisture testing and desiccating ,temperature up to 250 °C and maintain 760mmHg vacuum
  • Tempered Safety Glass Window And 3 & 4mm thick stainless steel, Chamber and heat resistant silicone packing door
  • Vacuum & Vent Valve And safety 3-way valve, slow Vacuum relief prevents powdered sample scattering
  • Seamless Silicone Packing Designed and produced with technical structure by large mold ensure excellent vacuum condition
  • Digital PID Control Provides Precision temperature Control, timer, alarm, auto- tunning.
  • Safety and Convenience Over temperature and over current protection, Leakage Breaker ensure user safety

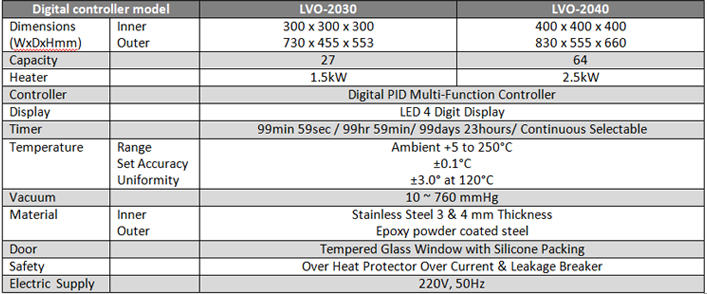

Technical parameters:

Features:

  • Digital PID Control Membrane type touch keypad provides precision Temperature control, timer, alarm, auto –tunning.
  • Tempered Safety Glass Window For easy sample view without door opening
  • Dust-Free Gravity- Flow Convection Gentle drying up to 250 °C max
  • Safety and Convenience Over temperature and current protection, leakage breaker ensure user safety and adjustable sliding rack

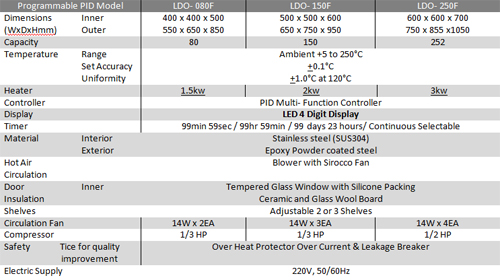

Technical parameters:
