Herolab Centrifuges

Herolab has been developing and manufacturing laboratory centrifuges for more than 30 years at its plant in Wiesloch near Heidelberg, Germany. It offers eight table-top models, two under-bench units and three large floor standing centrifuges – Herolab seeks to provide solution to all your centrifugal needs.


  • Red Line Centrifuges (max. 21.000 rpm/ max. 50.743 x g)

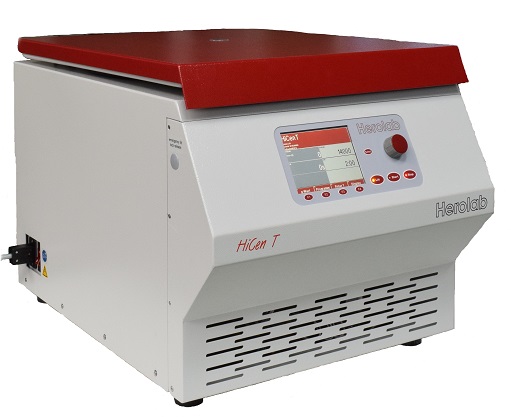

    • HiCen T

    Product Description

    • High-Speed Tabletop Centrifuge (without refrigeration)
    • Microprocessor controlled
    • Despite its large volume it does fit comfortably on the laboratory bench
    • Maximum capacity: 4 x 500 ml
    • 12 angle rotors, 2 swing-out rotors
    • Speed: 500 – 14,000 rpm, in steps of 100 rpm
    • g-force (RCF): 21,913 x g, in steps of 10 x g
    • Timer: up to 180 min, in 1 min increments
    • HOLD for longer runs
    • 8 acceleration and deceleration ramps
    • Maintenance free, brushless induction drive
    • Stainless steel chamber with additional inner guard ring
    • Overspeed detection, imbalance detection and cut-off
    • Motorized lid lock, automatic lid opening, emergency lid lock release
    • Large color display for both current and preset values of speed/g-force, time and temperature
    • temperature only in refrigerated model HiCen TR)

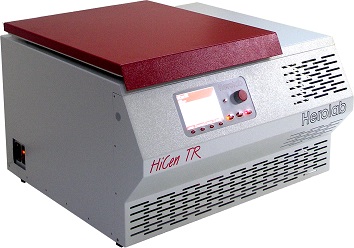

    HiCen TR

    Product Description

    • High-Speed Tabletop Centrifuge - refrigerated
    • Microprocessor controlled
    • Despite its large volume will comfortably fit on the laboratory bench
    • Maximum capacity: 4 x 500 ml
    • 12 angle rotors, 2 swing-out rotors
    • Speed: 500 – 15,000 rpm, in steps of 100 rpm
    • g-force (RCF): 26,790 x g, in steps of 10 x g
    • Timer: up to 180 min, in 1 min
    • HOLD for longer runs
    • 8 acceleration and deceleration ramps
    • Maintenance free, brushless induction drive
    • Stainless steel chamber with additional inner guard ring
    • Overspeed detection, imbalance detection and cut-off
    • Motorized lid lock, automatic lid opening, emergency lid lock release
    • Large color display for both current and preset values of speed/g-force, time and temperature

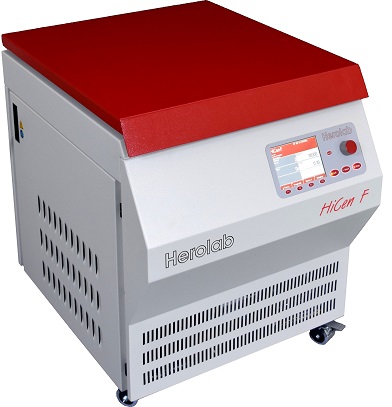

    HiCen F

    Product Description

    • High-Speed Floor Centrifuge (without refrigeration)
    • Microprocessor controlled
    • Can be permanently installed or moved on rollers
    • Maximum capacity: 4 x 500 ml
    • 13 angle rotors, 2 swing-out rotors
    • Speed: 500 – 14,000 rpm, in steps of 100 rpm
    • g-force (RCF): 21,913 x g, in steps of 10 x g
    • Timer: up to 180 min, in 1 min increments
    • HOLD for longer runs
    • 8 acceleration and deceleration ramps
    • Maintenance free, brushless induction drive
    • Stainless steel chamber with additional inner guard ring
    • Overspeed detection, imbalance detection and cut-off
    • Motorized lid lock, automatic lid opening, emergency lid lock release
    • Large color display for both current and preset values of speed/g-force, time and temperature
      • (temperature only in refrigerated model HiCen FR)

    HiCen FR

    Product Description

    • High-Speed Floor Centrifuge - refrigerated
    • Microprocessor controlled
    • Can be permanently installed or moved on rollers
    • Maximum capacity: 4 x 500 ml
    • 12 angle rotors, 2 swing-out rotors
    • Speed: 500 – 18,000 rpm, in steps of 100 rpm
    • g-force (RCF): 34,774 x g, in steps of 10 x g
    • Timer: up to 180 min, in 1 min increments
    • HOLD for longer runs
    • 8 acceleration and deceleration ramps
    • Maintenance free, brushless induction drive
    • Stainless steel chamber with additional inner guard ring
    • Overspeed detection, imbalance detection and cut-off
    • Motorized lid lock, automatic lid opening, emergency lid lock release
    • Large color display for both current and preset values of speed/g-force, time and temperature

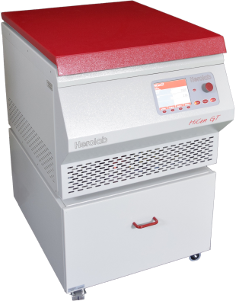

    HiCen GT

    Product Description

    • Large High-Speed Centrifuge
    • Microprocessor controlled
    • Maximum capacity: 4 x 1,000 ml
    • 15 angle rotors, 4 swing-out rotors, 2 vertical rotors
    • Speed: 500 – 14,000 rpm, in steps of 100 rpm
    • g-force (RCF): 21,913 x g, in steps of 10 x g
    • Timer: up to 180 min, in 1 min increments
    • HOLD for longer runs
    • 8 acceleration and deceleration ramps
    • Maintenance free, brushless induction drive
    • Stainless steel chamber with additional inner guard ring
    • Overspeed detection, imbalance detection and cut-off
    • Motorized lid lock, automatic lid opening, emergency lid lock release
    • Large color display for both current and preset values of speed/g-force and time

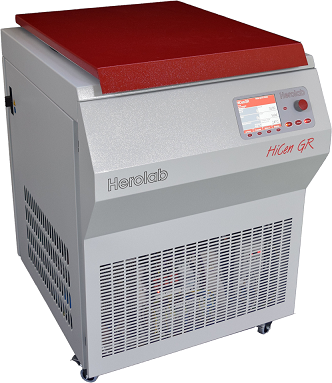

    HiCen GR

    Product Description

    • Large High-Speed Centrifuge - refrigerated
    • Microprocessor controlled
    • Maximum capacity: 4 x 1,000 ml
    • 15 angle rotors, 4 swing-out rotors, 2 vertical rotors
    • Speed: 500 – 18,000 rpm, in steps of 100 rpm
    • g-force (RCF): 33,688 x g, in steps of 10 x g
    • Timer: up to 180 min, in 1 min increments
    • HOLD for longer runs
    • 8 acceleration and deceleration ramps
    • Maintenance free, brushless induction drive
    • Stainless steel chamber with additional inner guard ring
    • Overspeed detection, imbalance detection and cut-off
    • Motorised lid lock, automatic lid opening, emergency lid lock release
    • Large color display for both current and preset values of speed/g-force, time and temperature

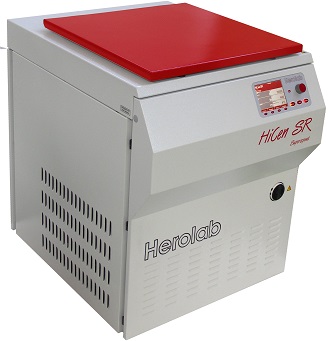

    HiCen SR

    Product Description

    • Large High-Speed Centrifuge - refrigerated
    • Microprocessor controlled
    • Maximum capacity: 4 x 1,000 ml
    • 14 angle rotors, 2 swing-out rotors, 2 vertical rotors
    • Speed: 500 – 21,000 rpm, in steps of 100 rpm
    • g-force (RCF): 50,743 x g, in steps of 10 x g
    • Timer: up to 180 min, in 1 min increments
    • HOLD for longer runs
    • 8 acceleration and deceleration ramps
    • Maintenance free, brushless induction drive
    • Stainless steel chamber with additional inner guard ring
    • Overspeed detection, imbalance detection and cut-off
    • Motorised lid lock, automatic lid opening, emergency lid lock release
    • Large color display for both current and preset values of speed/g-force, time and temperature

    HiCen XL

    Product Description

    • Extra-Large High-Speed Centrifuge - refrigerated
    • Microprocessor controlled
    • Maximum capacity: 6 x 1000 ml
    • 18 angle rotors, 4 swing-out rotors, 2 vertical rotors
    • Speed: 500 – 21,000 rpm, in steps of 100 rpm
    • g-force (RCF): 50,743 x g, in steps of 10 x g
    • Timer: up to 180 min, in 1 min increments
    • HOLD for longer runs
    • 8 acceleration and deceleration ramps
    • Maintenance free, brushless induction drive
    • Stainless steel chamber with additional inner guard ring
    • Overspeed detection, imbalance detection and cut-off
    • Motorised lid lock, automatic lid opening, emergency lid lock release
    • Large color display for both current and preset values of speed/g-force, time and temperature



  • Blue Line Centrifuges (max. 18.000 rpm/ max. 30.065 x g)

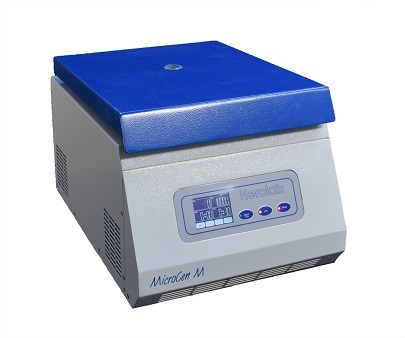

    • MicroCen M

    Product Description

    High-Speed Microliter Centrifuge

    • Microprocessor controlled
    • Especially for microliter tubes
    • Maximum capacity: 30 x 2.2 ml
    • 4 angle rotors, 1 swing-out rotor, 1 microhematocrit rotor
    • Speed: 500 - 16,000 rpm, in steps of 100 rpm
    • g-force (RCF): 20,865 x g, in steps equivalent to 100 rpm
    • Timer: up to 60 min, in 1 min increments, on request up to 999 min.
    • HOLD for longer runs / PULSE for short runs
    • 9 acceleration and deceleration ramps
    • Maintenance free, brushless induction drive
    • Stainless steel chamber with additional inner guard ring
    • Overspeed detection, imbalance detection and cut-off
    • Motorized lid lock, automatic lid opening, emergency lid lock release
    • LCD display for both current and preset values of speed/g-force, time and temperature
    • (temperature only in refrigerated model MicroCen MR)

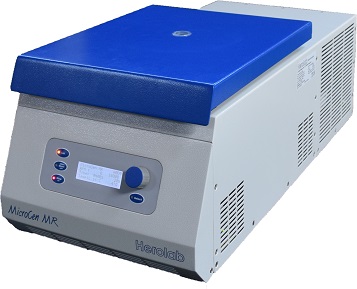

    MicroCen MR

    Product Description

    High-Speed Microliter Centrifuge

    • Microprocessor controlled
    • Especially for microliter tubes
    • Maximum capacity: 30 x 2.2 ml
    • 4 angle rotors, 1 swing-out rotor, 1 microhematocrit rotor
    • Speed: 500 - 18,000 rpm, in steps of 100 rpm
    • g-force (RCF): 26,407 x g, in steps equivalent to 100 rpm
    • Timer: up to 60 min, in 1 min increments, on request up to 999 min.
    • HOLD for longer runs / PULSE for short runs
    • 9 acceleration and deceleration ramps
    • Maintenance free, brushless induction drive
    • Stainless steel chamber with additional inner guard ring
    • Overspeed detection, imbalance detection and cut-off
    • Motorized lid lock, automatic lid opening, emergency lid lock release
    • LCD display for both current and preset values of speed/g-force, time and temperature
    • (temperature only in refrigerated model MicroCen MR)

    UniCen M

    Product Description

    Universal High-Speed Centrifuge

    • Microprocessor controlled
    • For centrifuge tubes and bottles, Microtiter plates, Tissue-culture tubes, Microliter tubes, etc.
    • Maximum capacity: 4 x 200 ml
    • 12 angle rotors, 3 swing-out rotors, 1 microhematocrit rotor
    • Speed: 500 - 16,000 rpm, in steps of 100 rpm
    • g-force (RCF): 23,755 x g, in steps equivalent to 100 rpm
    • Timer: up to 60 min, in 1 min increments, on request up to 999 min.
    • HOLD for longer runs / PULSE for short runs
    • 9 acceleration and deceleration ramps
    • Maintenance free, brushless induction drive
    • Stainless steel chamber with additional inner guard ring
    • Overspeed detection, imbalance detection and cut-off
    • Motorized lid lock, automatic lid opening, emergency lid lock release
    • LCD display for both current and preset values of speed/g-force, time and temperature
    • (temperature only in refrigerated model UniCen MR)

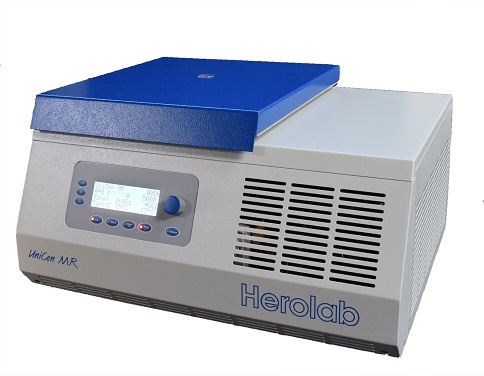

    UniCen MR

    Product Description

    Universal High-Speed Centrifuge (refrigerated)

    • Microprocessor controlled
    • For centrifuge tubes and bottles, Microtiter plates, Tissue-culture tubes, Microliter tubes, etc.
    • Maximum capacity: 4 x 200 ml
    • 12 angle rotors, 3 swing-out rotors, 1 microhematocrit rotor
    • Speed: 500 – 18,000 rpm, in steps of 100 rpm
    • g-force (RCF): 30,065 x g, in steps equivalent to 100 rpm
    • Timer: up to 60 min, in 1 min increments, on request up to 999 min.
    • HOLD for longer runs / PULSE for short runs
    • 9 acceleration and deceleration ramps
    • Maintenance free, brushless induction drive
    • Stainless steel chamber with additional inner guard ring
    • Overspeed detection, imbalance detection and cut-off
    • Motorized lid lock, automatic lid opening, emergency lid lock release
    • LCD display for both current and preset values of speed/g-force, time and temperature

    UniCen HR

    Product Description

    Universal High-Speed Centrifuge (refrigerated)

    • Microprocessor controlled
    • For centrifuge tubes and bottles, Microtiter plates, Tissue-culture tubes, Microliter tubes, etc.
    • Maximum capacity: 4 x 200 ml
    • 13 angle rotors, 3 swing-out rotors, 1 microhematocrit rotor
    • Speed: 500 – 30,000 rpm, in steps of 100 rpm
    • g-force (RCF): 70,484 x g, in steps equivalent to 100 rpm
    • Timer: up to 60 min, in 1 min increments, on request up to 999 min.
    • HOLD for longer runs / SHORT for short runs
    • 9 acceleration and deceleration ramps
    • Maintenance free, brushless induction drive
    • Stainless steel chamber with additional inner guard ring
    • Overspeed detection, imbalance detection and cut-off
    • Motorized lid lock system, automatic lid opening, emergency lid lock release
    • Display for both current and preset values of speed/g-force, time and temperature, fast One-Knob data entry
    • Cooling at standstill and fast cooling program
    • OPtional touchpad-panel with advanced options
